Room I · The Maker
Steiner of Bôle, under the sign of the cockerel
The lid, gilt with the cockerel and Präzision, Précision, Précisione.
Steiner was the trade name of Thiebaud, a maker of watchmakers' turns, lathes and pivoting tools at Bôle, outside Neuchâtel. Its mark was a cockerel, which gave the Jacot tool its German name, Hahn. Horia SA took Thiebaud over in 1992, and the Hahn pattern is still made in Switzerland. This set comes from the Steiner years, in the black leatherette case that came before today's wooden one.
Room II · The Set
Frame, four runners, cable drive and spares
A Jacot tool holds a staff between a grooved runner and a counter-centre so that its pivot can be spun and burnished to size. The brass frame here is 85mm along the base, with a knurled locking screw on each upright. Three graduated runners, marked in hundredths of a millimetre, cover pivots from 0.04 to 0.30mm, from balance staffs up through the train; the fourth is the counter-centre.
In place of the usual fiddle bow, the left upright carries Steiner's cable drive: a small pulley with a return spring along the bed. The case also holds three rounding discs in a card tube, a steel pivot gauge and a spare spring still in its paper. Everything works: the runners lock, the collets close and the drive turns freely.
In place of the usual fiddle bow, the left upright carries Steiner's cable drive: a small pulley with a return spring along the bed. The case also holds three rounding discs in a card tube, a steel pivot gauge and a spare spring still in its paper. Everything works: the runners lock, the collets close and the drive turns freely.
The set laid out; fitted in its case; the insert cut to each part.
Room III · The Record
Signed on the frame and on the lid
The case closed.
The front of the left upright is stamped with the Steiner mark, C and S in an oval either side of a cockerel. The same cockerel is gilt on the lid of the case, beside the trilingual Präzision, Précision, Précisione and the firm's emblem of a pair of turns crossed by a hooked S. Every recess in the red felt insert is filled.

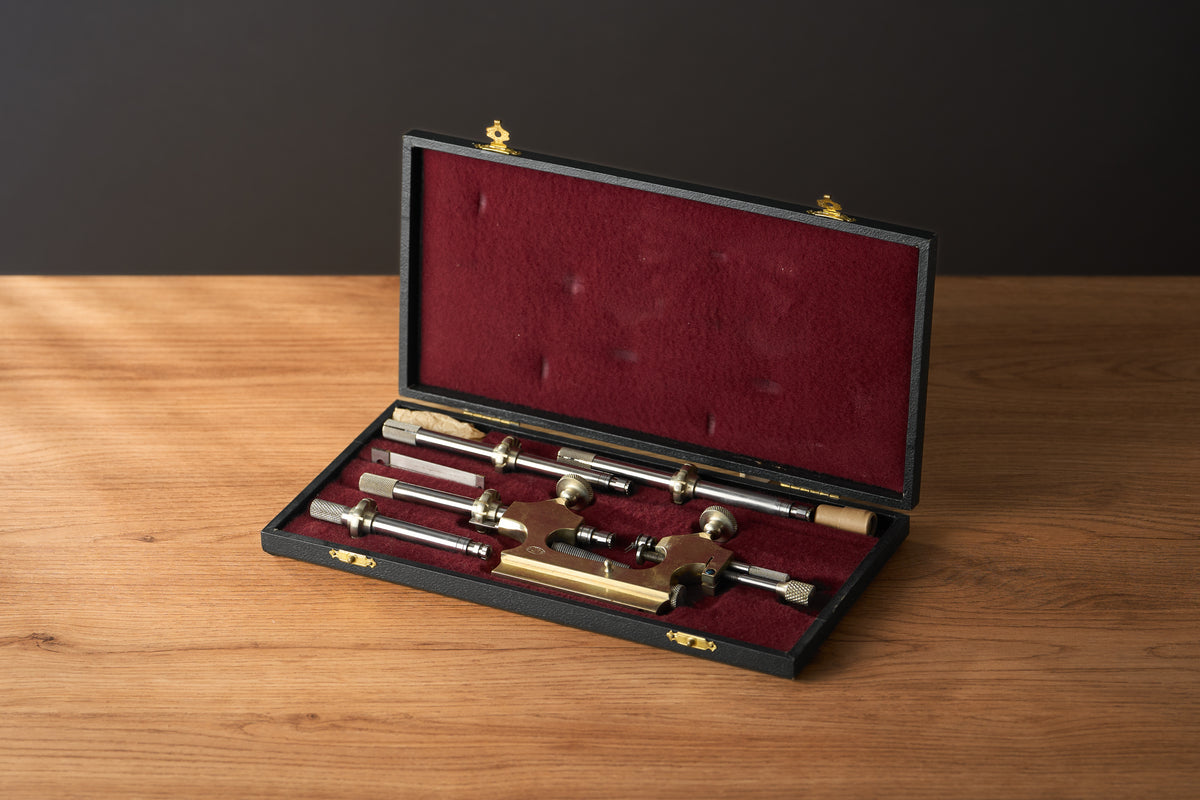

The set in its case.
Frame
Very good
Even patina to the brass, with a few small spots of corrosion bloom by the right upright.
Runners and fittings
Excellent
Bright steel; the runners slide and lock and the collets close correctly.
Mechanism
Excellent
Fully working; the pulley turns freely and the return spring holds its tension.
Accessories
Three graduated runners, a counter-centre, three rounding discs, the pivot gauge and a spare spring.
Case
Very good
Light wear to the leatherette at the corners; bright hardware; felt insert pressed where the parts sit.
- Maker
- Steiner (Thiebaud, Bôle)
- Model
- Hahn Jacot tool with cable drive
- Date
- C.1960s
- Country
- Switzerland
- Materials
- Brass frame, steel runners and fittings
- Frame length
- 85mm
- Runners
- 0.04 to 0.10mm (12 grooves), 0.15 to 0.30mm (6 grooves), 0.16 to 0.30mm, plus counter-centre
- Case
- 27.5 by 14cm, black leatherette with fitted red felt insert
- Marks
- C, cockerel and S in an oval on the frame; gilt cockerel, turns emblem and trilingual lettering on the lid
- Contents
- Frame, three graduated runners, counter-centre, three rounding discs, pivot gauge, spare spring
The Estate Collection
Room IV · Acquisition
€595
We'd love to discuss this piece with you.
Steiner
€595
Enquiry
Steiner 'Hahn' Jacot Tool, Cased Set, c.1960s
×
